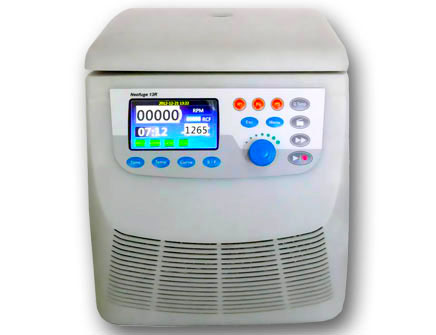

Biovac 13/13R Centrifuges

---

Biovac 13R high speed centrifuge provides an excellent centrifugal function and is extremely user friendly with a high level of reliability and safety.

-Features
1. Biovac 13/13R centrifuges are equipped with a precise electronic imbalance detection system.
2. They use a patented lid-lock system for safety.
3. LCD display indicates the speed, RCF, time, temperature, acceleration, braking rates and error messages.
4. The Biovac 13R centrifuge is refrigerated by a CFC-free unit with a temperature control range of -10 to 40?C.
5. It provides rotor pre-cooling function.
6. Fixed angle rotor #1303 is offered as a standard accessory.
7. Five autoclavable(121 , 20min) ultra-duralumin airtight rotors are available.
8. Automatic rotor identification function.
9. Warning alarms if any abnormal operation occurs.
10. Maximum speed of 13800rpm and a maximum RCF of 17458 x g.

Specifications of Biovac 13R/13 Centrifuges

Max. speed	13,800rpm	Control	Microprocessor control
Max. RCF	17,458 x g	Weight without rotor	20Kg (Biovac 13)/ 39Kg(Biovac 13R)
Max. capacity	24 x 1.5/2.0ml	Power	150VA (Biovac 13) / 300VA (Biovac 13R)
Temperature range	-10?C~+40?C (Biovac 13R)	Refrigerant	R134a(CFC-free) (Biovac 13R)
Running time	<=9h 59min, quick spin	Dimensions(H x W x D)	220mm x 230mm x 330mm (Biovac 13)
Step	10rpm
Drive	Brushless induction motor		320mm x 285mm x 480mm (Biovac 13R)
Power supply	220/50Hz



Biovac 15/15R Centrifuges (may vary from picture above)

---

-Features
1. Biovac 15R centrifuge is refrigerated by a CFC-free unit which offers a temp. control range of -10 to 40?.
2. LCD display indicates speed, RCF, time, temperature, acceleration, braking rates and error messages.
3. Maximum speed of 16000rpm and maximum RCF of 24905 x g.
4. The maximum capacity is 4 x 100ml in a swing-out rotor.
5. Five autoclavable(121?, 20min) ultra-duralumin airtight rotors are available.
6. Fixed angle rotor #1501 is offered as a standard accessory.
7. Automatic rotor identification function.
8. Rotor pre-cooling function is available for Biovac 15R centrifuge.
9. A patented lid lock system is used for safety.
10. It's equipped with a precise electronic imbalance detection system.
11 It has a "quick spin" key for short time working without other settings required.
12. It offers 9 acceleration and 9 braking curves.
13. Warning alarms if any abnormal operation occurs.

Specifications of Neofuge 15R/15 Laboratory Centrifuge

Max. speed	16,000 rpm	Drive	Brushless induction motor
Min. speed	300 rpm	Noise at max. speed	<=60dB
Step	10rpm	Temperature range	-10? ~+40? (Biovac 15R only)
Max. RCF	24905 x g	Control	Microprocessor control
Max. capacity	4 x 100ml	Running time	<=9h 59min, quick spin
Braking/acceleration curves	9/9	Dimensions(H x W x D)	330mm x 525mm x 390mm (Biovac 15)
Refrigerant	R134a(CFC-free) Biovac 15R only		315mm x 580mm x 520mm (Biovac 15R)
Power supply	220/50Hz (Standard)	Net weight without rotor	58Kg (Biovac 15)
	220/60Hz (Optional)		74kg (Biovac 15R)
